Dump Inserts

Stainless steel and polymer dump inserts
Fits most 8’ and 6’ beds and now comes
with a 2 year warranty,

In Additions to Dumper Dogg dump bodys, Humphrey's Hydraulics servises and installs many makes and moddels. The 5535000 Replacement Tailgate Spreader adds functionality to the DumperDogg™ pickup dump inserts, and complements the existing line of SaltDogg® spreaders. The 9035000 Electric Drive Replacement Tailgate Spreader includes an adapter which allows it to fit on 1-3 Yard Dump Bodies.

Polymer Options

Standard Features



  • Fits Most 8' Beds

  • Power Up and Power Down

  • 1.5Kw motor (3 HP max) for Hydraulic Pump

  • 1.6 cu yd cap.

  • Payload cap.: 6,000 lbs. max*

  • Dump Angle 0°– 45°

  • Double Wall Poly Construction

  • Integral Steel Window Protector

  • Includes Manual Safety Bar

  • Tethered Control Box with 9' Cord

  • Grease Fitting/Holes in Pivot Points

  • Includes Body-Up Indicator Kit (SK10)

  • Tailgate Chains

  • 20' Battery Cables

  • Black Powder Coat Structural Steel Frame

  • Double Pivoting and Removable Steel Tailgate

  • 3/4" Diameter Tailgate Hinge Pins

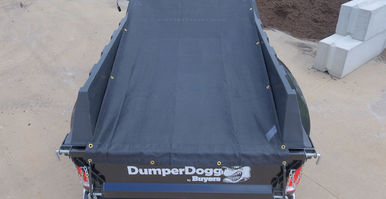

  • DTR4510 - Roll Tarp Kit, 4.6' x 10' for 5532000

  • 5531050 - Poly Wall Extensions 5532000

  • Part Numbers 5532000 - 8' Poly Insert

* weight limits not to exceed manufacturer's gross vehicle weight limits

Optional Features

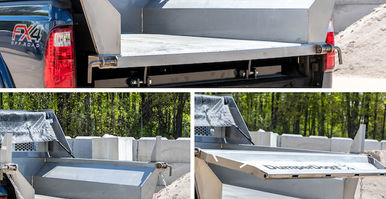

Steel / Stainless steel Options

Standard Features



  • Fits Most 8' and 6' Beds

  • Power Up and Power Down

  • 1.5Kw motor (3 HP max) for
    Hydraulic Pump

  • 2 cu yd cap.(8'); 1.5 cu yd cap.(6')

  • Payload cap.: 6,000 lbs. max*

  • Dump Angle 0°– 45°

  • 12 Gauge Steel orNEW Stainless Steel Material

  • Black Powder Coat Finish or
    NEW Stainless Steel

  • Includes Manual Safety Bar

  • Tethered Control Box with 9' Cord

  • Grease Fittings/Holes in Pivot Points

  • Includes Body-Up Indicator Kit (SK10)

  • 20' Battery Cables

  • Tailgate Chains

  • Black Powder Coat Structural
    Steel Frame

  • Double Pivoting and Removable
    Steel Tailgate

  • 3/4" Diameter Tailgate Hinge Pins

  • 5531010 - Bolt-On Cab Guard for 6' & 8' Steel Insert

  • 5534010 -Bolt-On Cab Guard for 6' & 8' Stainless Steel InsertNEW

  • 5531020 - Wall Extension Bracket Kit for 6' & 8' Steel Insert (hardware & 2 brackets per side), accepts one 2" x 12" per side**

  • 5534020 - Wall Extension Bracket Kit for 6' & 8' Stainless Steel Insert (hardware & 2 brackets per side), accepts one 2" x 12" per side**NEW

  • DTR5508 - Roll Tarp Kit, 5.4' x 9.5' for 6' Steel/Stainless Steel Inserts***

  • DTR5511 - Roll Tarp Kit, 5.4' x 11.5' for 8' Steel/Stainless Steel Inserts***

Optional Features

Part Numbers

  • 5531000 - 8' Steel Insert

  • 5531006 - 6' Steel Insert

  • 5531100 - 8' Stainless Steel InsertNEW

  • 5531106 - 6' Stainless Steel InsertNEW

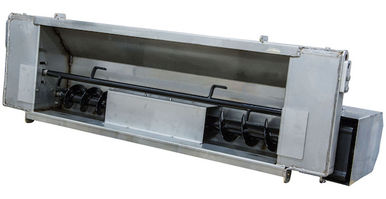

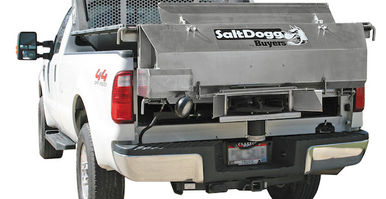

SaltDogg Replacement Tailgate Spreader

The 5535000 Replacement Tailgate Spreader adds functionality to the DumperDogg™ pickup dump inserts, and complements the existing line of SaltDogg® spreaders.




Part No. 5535000
All Stainless Steel Construction won't rust or corrode
12V DC, 1/2 HP Spinner Motor 54 AMP/ 620 RPM
12V DC, 3/4 HP Auger Gear Motor 50AMP/23 RPM/1042in lbs.
Spreads from 4' to 25' of rock salt, free flowing granular materials or chemicals.
Adjustable spread pattern from 4' to 20'
Includes in-cab, independent variable spinner speed control and auger control.
Includes dual-flight augers with mixing tines
Two augers, 5" OD x 2.4" ID x 20"
14" poly spinner
Overall dimensions 64.5"W x 31"H x 16.5"D
Weight: 280 lbs.
Quick and Easy Installation
Fits all DumperDogg Dump Inserts

The 9035000 Electric Drive Replacement Tailgate Spreader includes an adapter which allows it to fit on 1-3 Yard Dump Bodies.

Part No. 9035000
All Stainless Steel Construction won't rust or corrode
Black powder coated carbon steel dump mounting hardware
12VDC, 1/2 HP Spinner Motor 54 AMP/ 620 RPM
12VDC, 3/4 HP Auger Gear Motor 50 AMP/ 23 RPM
Adjustable spread pattern spreads from 4' to 25' of rock salt, free-flowing granular materials or chemicals.
Includes in-cab, independent variable spinner speed control and auger control.
Includes dual-flight augers with mixing tines
Two augers, 5" O.D. x 2.4" I.D. x 20"L
14" Poly spinner
Overall Dimensions 64.5" W x 31" H x 16.5" D
Mounting brackets adjust from 73"-95"
Weight: 420 lbs.
Quick and Easy installation
